Product Description

About This ,Customer Return Superlux R102 Aluminum Ribbon Microphone,

Change of mind.

This item is a customer return. We have checked it and think it's in pretty good condition, but this has been shipped to a customer and most likely used so there is the possibility of small marks or scratches that we haven't seen. This item is covered under warranty but it doesn't have free returns, unless it's significantly not as described.

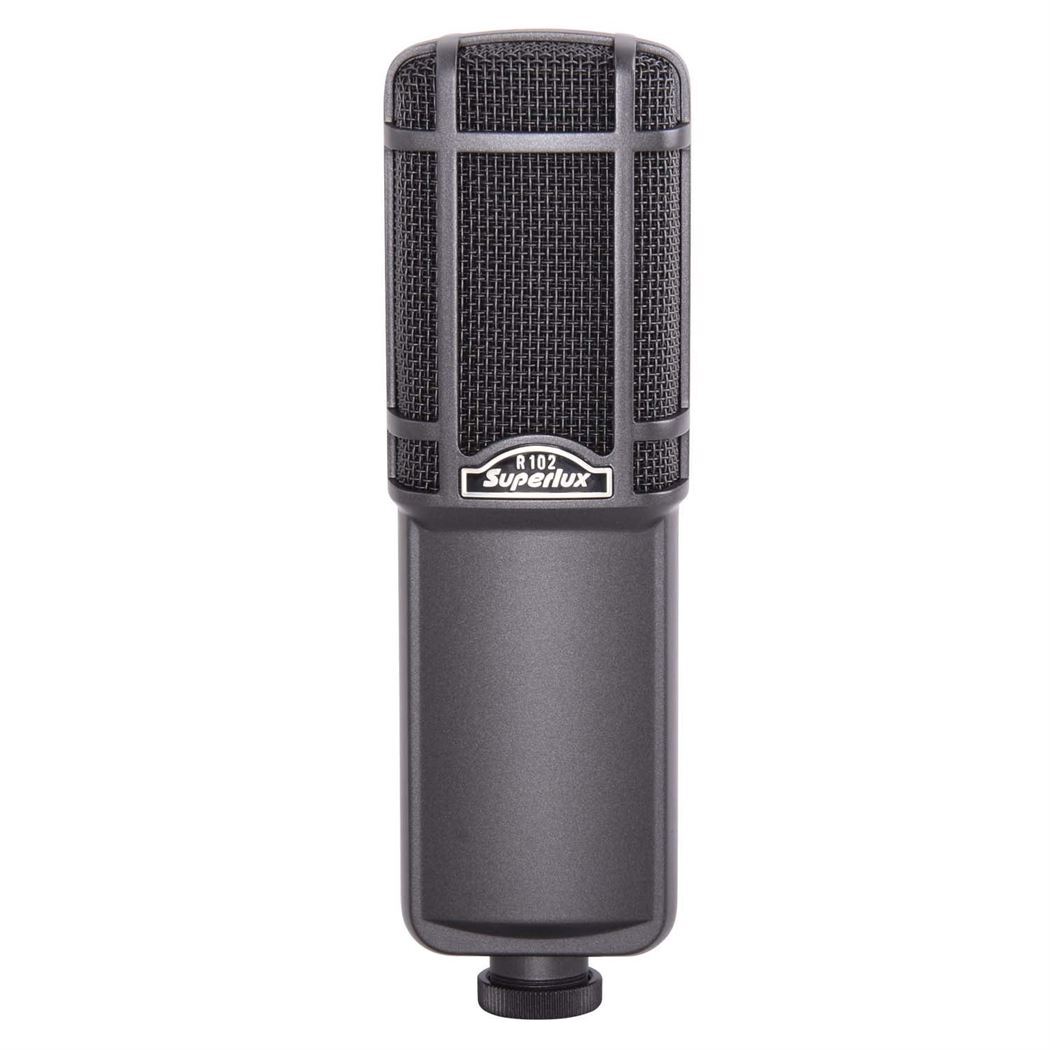

Superlux R102 Aluminum Ribbon Microphone

The R102 is an active aluminium ribbon microphone designed for the recording studio. The features the high sensitivity of a condenser microphone yet exhibits the smoother frequency response and excellent transient response of a ribbon microphone. The speed response of a ribbon mic is optimal among all types of microphones.

The R102 active aluminium ribbon microphone consists of two parts: an electro-magnetic transducer and an impedance converting circuit. The electromagnetic transducer applies a unique magnetic circuit field with a strong Nd magnet. The aluminium alloy ribbon, with a thickness of only 2.5 microns, is suspended between 2 poles and vibrates in synchrony with the incoming acoustical energy (soundwaves). Due to the extremely low mass of the ribbon, the transducer of this microphone boasts a premium transient response in converting acoustic energy into electronic signals. Whether at low/high frequencies or low/high sound pressure levels, the R102 delivers a precise reproduction of the original sound.

Please note: This item requires 48v phantom power to function.

Features

  • Wide and Extended Frequency Response
  • High sensitivity, wide dynamic range, low distortion and decreased noise
  • Stable performance regardless of ambient temperature or humidity
  • Figure 8 polar pattern with identical sensitivity at the front and back
  • Easy field replaceable modular ribbon assembly

The Tech Features

Brand: Superlux

Model: R102

Type: Aluminum Ribbon

Element: Active Pressure gradient electro-magnetic transducer

Diaphram: Aluminum Ribbon of 2.5 micron

Magnet: Strong Nd

Polar Pattern: Figure 8

Frequency Response: 20 - 15,000 Hz

Sensitivity: -40dBV/Pa (10 mV/Pa) at 1,000 Hz

Output Impedance: 250 20% at 1,000 Hz

Rated Load Impedance: >1000

Max. SPL: >140dB

Equivalent Noise Level: <20dB

Power Supply: 48v phantom power only

Current Drain: 4mA

Connector: 3-pin XLR-Male type

Dimension: 5.7cm x 3.7cm x 19.5cm

Included Accessories: Plastic Hard Case, Microphone Cradle, XLR Cable

Net Weight: 500g
